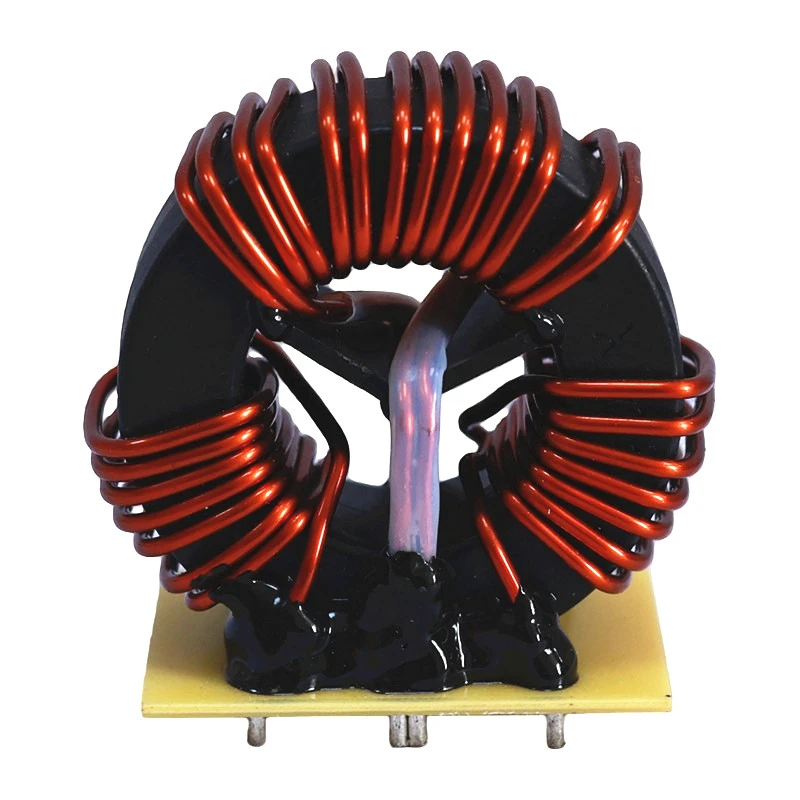

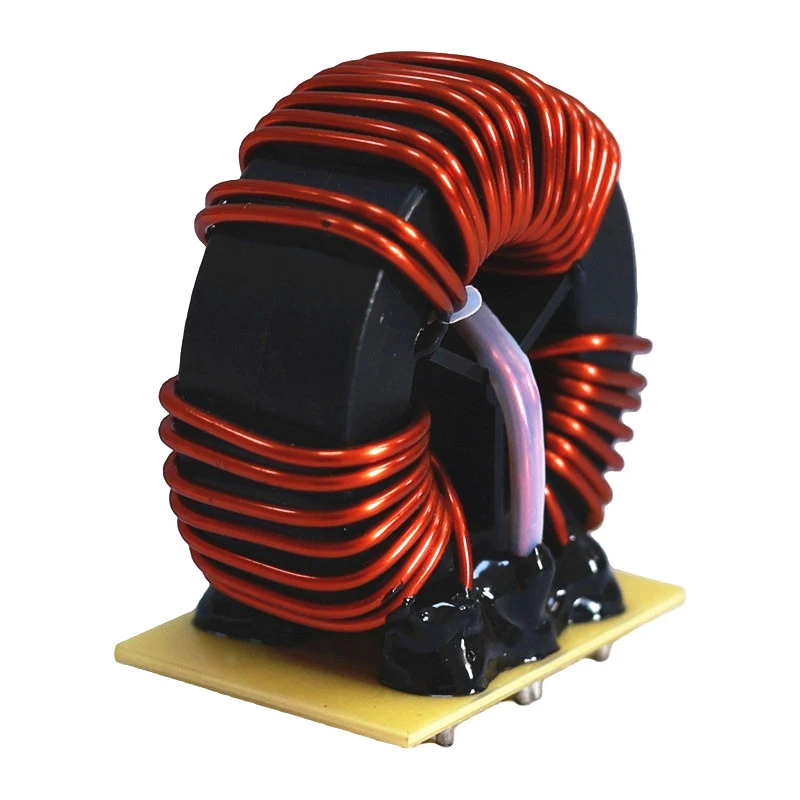

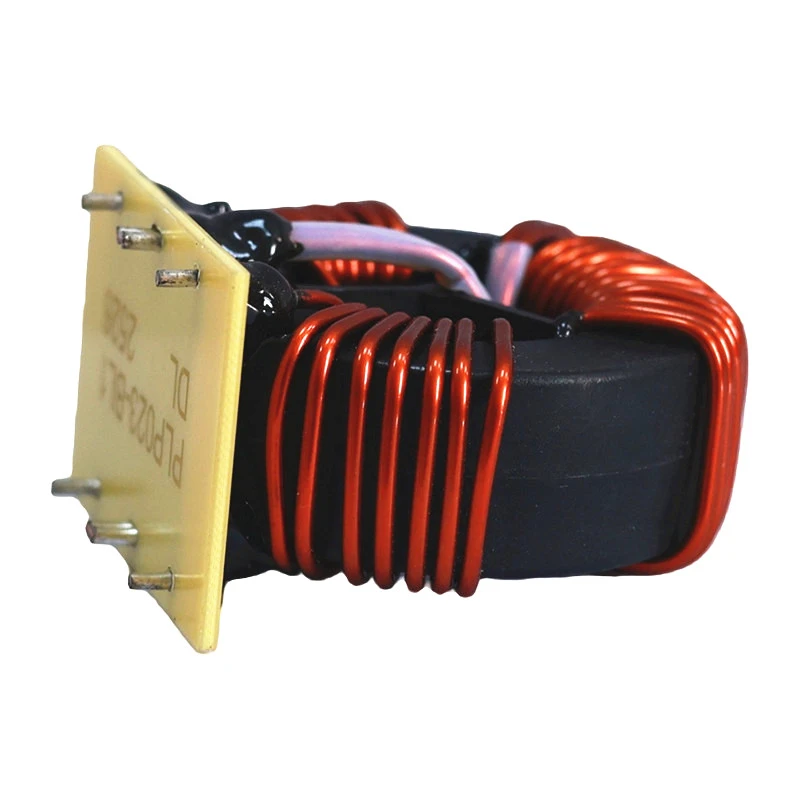

3-phase Toroidal Inductor

Three-phase Toroidal Inductor, also called three-phase toroidal choke, commonly adopts ferrite core, amorphous alloy and nanocrystalline alloy as core materials. It is a magnetic component composed of three groups of symmetrically arranged windings with identical turns and same winding direction. It is mainly used to suppress differential-mode and common-mode EMI in three-phase circuits. With the inductive characteristic of passing DC and blocking AC, it achieves energy storage, filtering, current limiting and current smoothing. It serves as a core component for EMC design and power quality optimization in three-phase power systems and high-power electronic equipment. Its rated current ranges from 10A to 500A, and inductance is 10μH~10mH (commonly 500μH~10mH). Widely applied in new energy, industrial control, power transmission, vehicle electronics and other high-power three-phase equipment, it is especially suitable for three-phase PFC circuits, DC-AC inverter circuits and three-phase input filtering scenarios.

The core of a three-phase toroidal inductor is typically fabricated from high-permeability magnetic materials such as ferrite or nanocrystalline alloy, which substantially increases inductance and enables effective attenuation of high-frequency noise. The closed magnetic path configuration of the toroidal core confines the magnetic flux lines within the core itself, thereby significantly minimizing electromagnetic interference with adjacent circuitry.
