Product Introduction

Ferrite Common-mode Inductor is primarily composed of a ferrite core, with two coils wound symmetrically in the same direction. Its core function is to suppress common-mode electromagnetic interference (EMI) in circuits while ensuring lossless transmission of differential mode signals. It offers a rated current range of 0.1A to 100A and an inductance range of 5µH to 100mH. This component is widely used in switching power supplies, automotive electronics, consumer electronics, industrial controls, communication equipment, medical instruments, and other fields. Common core materials include manganese-zinc (MnZn) and nickel-zinc (NiZn). The product typically holds relevant certifications such as UL, CQC, and AEC-Q200 (automotive grade), with an insulation rating of Class F or higher. It features small size, low temperature rise, high reliability, and versatile design options. These characteristics effectively enhance the anti-interference capability of electronic devices, ensuring stable operation even in complex electromagnetic environments.

Product Features

Ferrite common-mode inductors mainly have the following characteristics:

• Excellent anti-interference performance: The core is made of ferrite, which can be divided into manganese-zinc (MnZn) and nickel-zinc (NiZn) types. MnZn ferrite is suitable for low-frequency bands, while NiZn ferrite is suitable for high-frequency bands above 100MHz. The ferrite core has high initial permeability and presents extremely high impedance to high-frequency common-mode noise, enabling rapid attenuation of common-mode currents. Compared with ordinary inductors, ferrite common-mode inductors offer more significant suppression of conducted interference, effectively filtering out stray noise in the circuit and ensuring signal integrity.

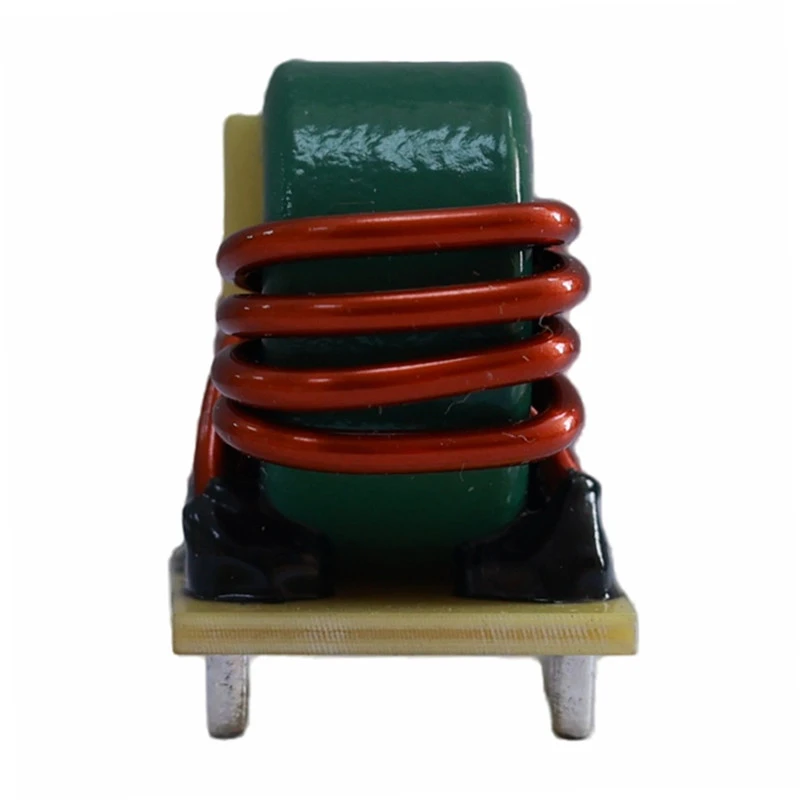

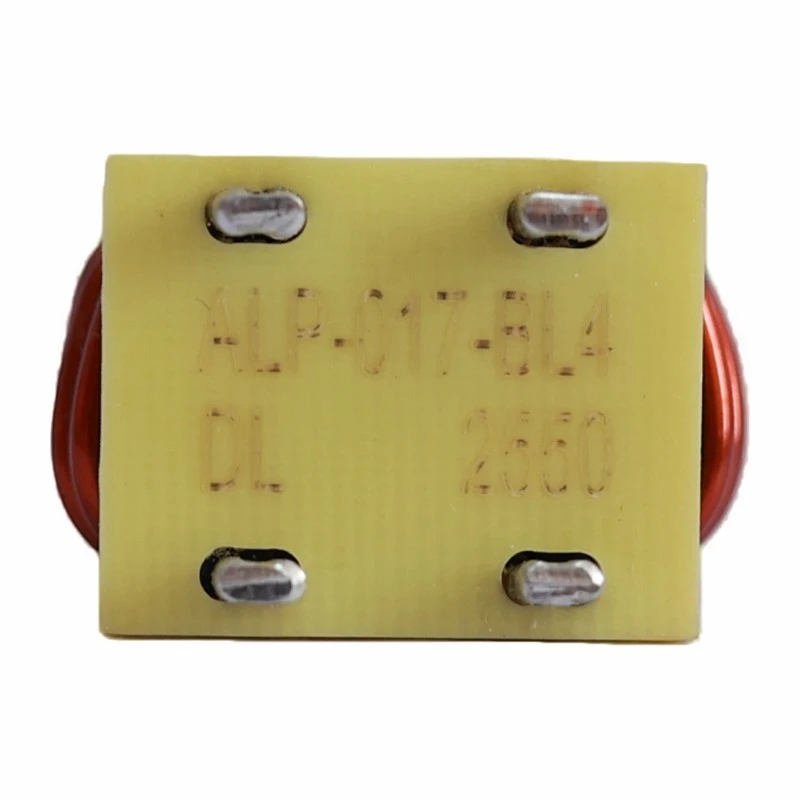

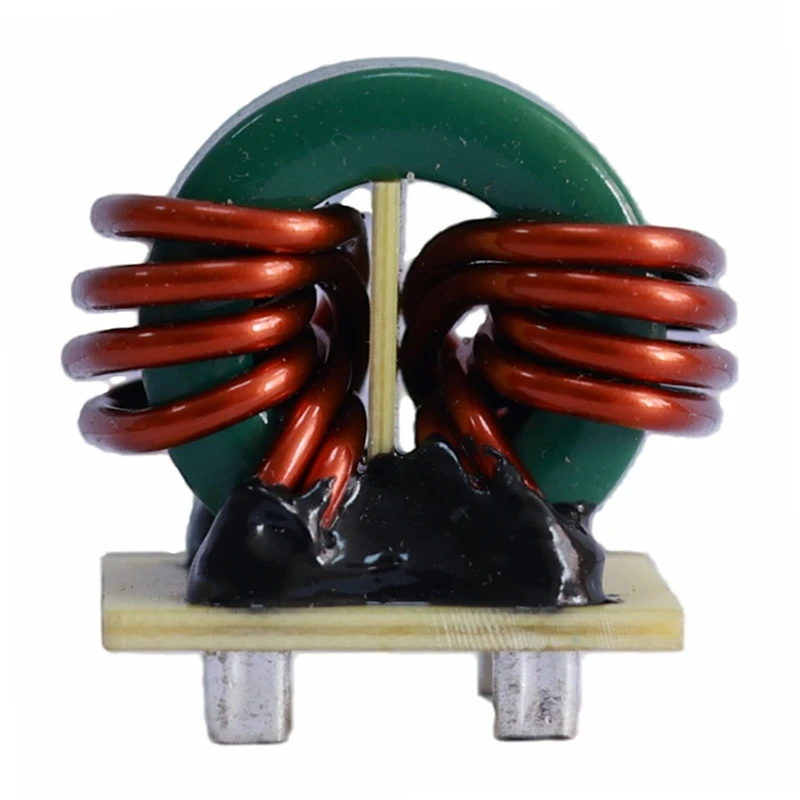

• Compact structure and more design flexibility: These inductors typically adopt a toroidal (ring) shape, with windings tightly wound around the core, resulting in a more compact structure. Since they are coreless (no bobbin) and the pins are fixed via a PCB board, the pin assignments can be more diversified.
