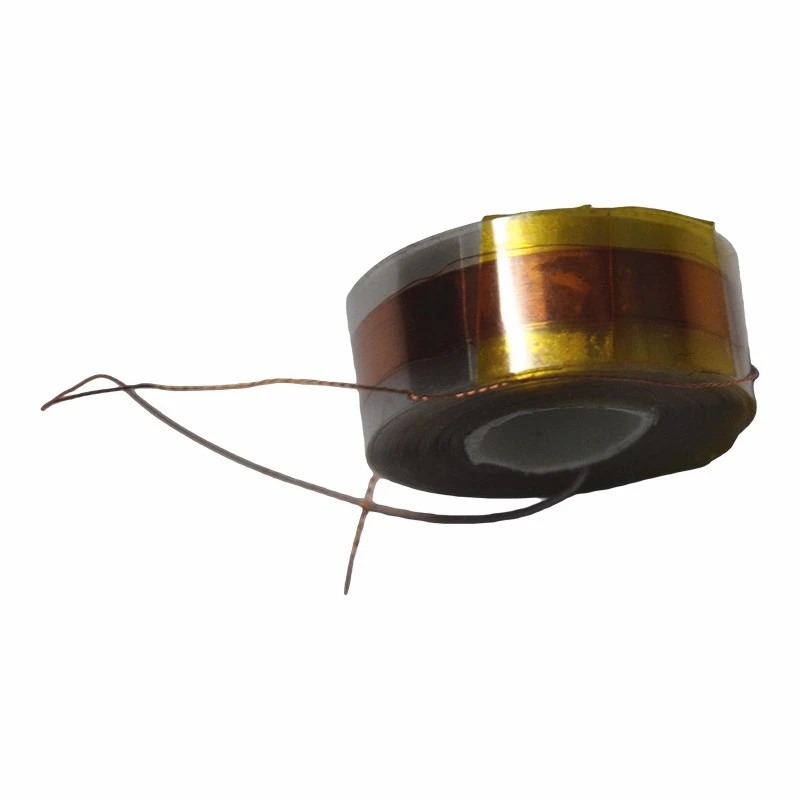

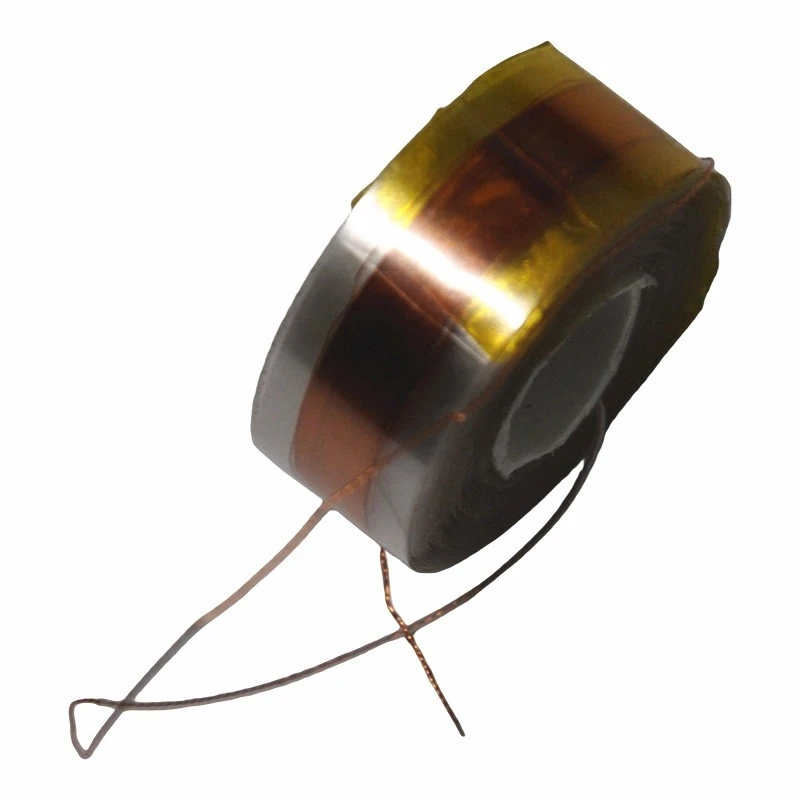

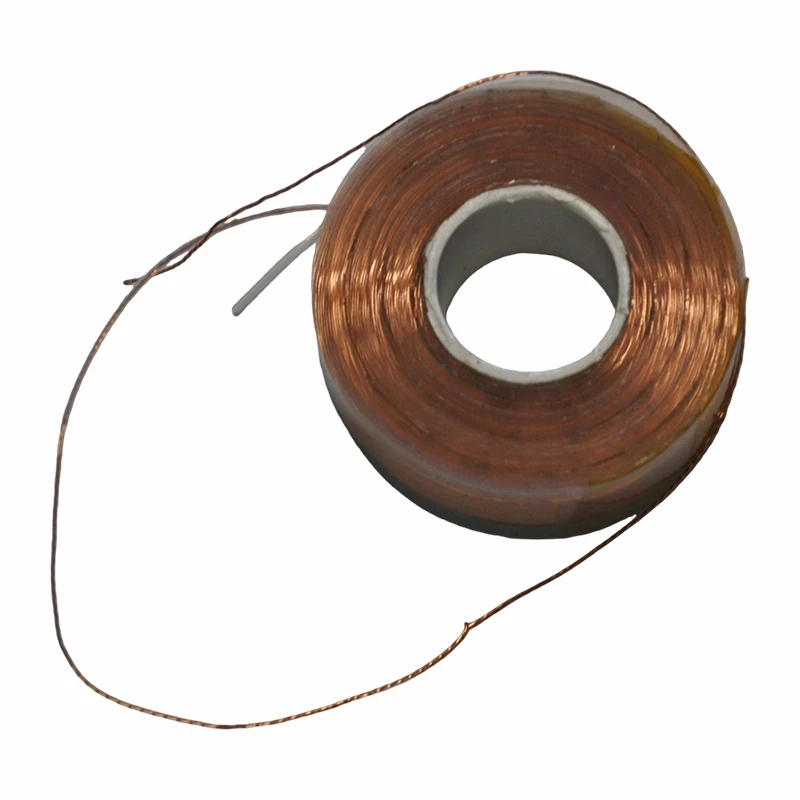

Air Core Toroid

An air core toroidal coil is an electronic component based on a toroidal structure, uniformly wound with insulated wire (commonly 2UEW) on a non-magnetic bobbin (or without a bobbin), and contains no ferromagnetic or magnetic core medium such as iron cores or magnetic cores. Its core function is to utilize the principle of electromagnetic induction to achieve energy storage, signal filtering, electromagnetic coupling, and high-frequency signal transmission. Its inductance is primarily determined by parameters such as the number of coil turns, winding diameter, and the conductive characteristics of the wire material. It is an indispensable core component in high-frequency electronic equipment and precision instruments. The rated current ranges from 0.1A to 50A, the inductance ranges from 0.1μH to 5mH (commonly between 5μH and 1mH), and the Q factor can reach 80 or higher. It is widely used in communication equipment, consumer electronics, automotive electronics, and other fields, and is particularly well-suited for applications such as high-frequency filtering, RF communication, signal coupling, and electromagnetic induction.

The product features of the air core toroidal coil are as follows:

• The air core toroidal coil is an inductor wound with enameled wire. The wire diameter is optimized based on the rated current and frequency requirements. For high-frequency products, fine-stranded twisted wires are often used to reduce the skin effect and minimize high-frequency losses.

• It adopts a closed toroidal winding structure, with the wire wound evenly and tightly arranged. Since there are no magnetic cores, iron cores, or other magnetically conductive media, there is no risk of magnetic saturation.
