Product Introduction

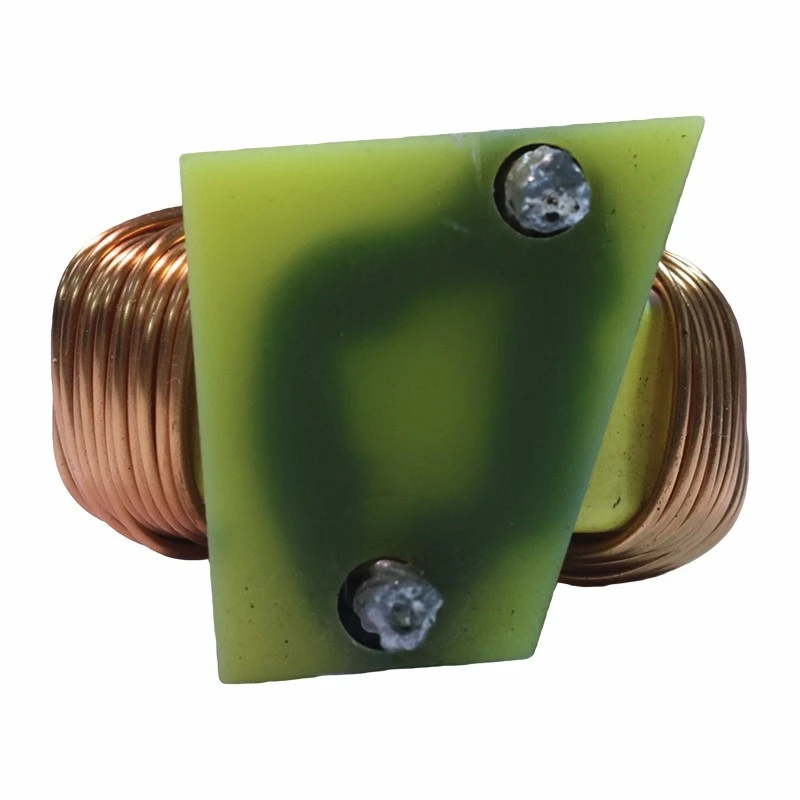

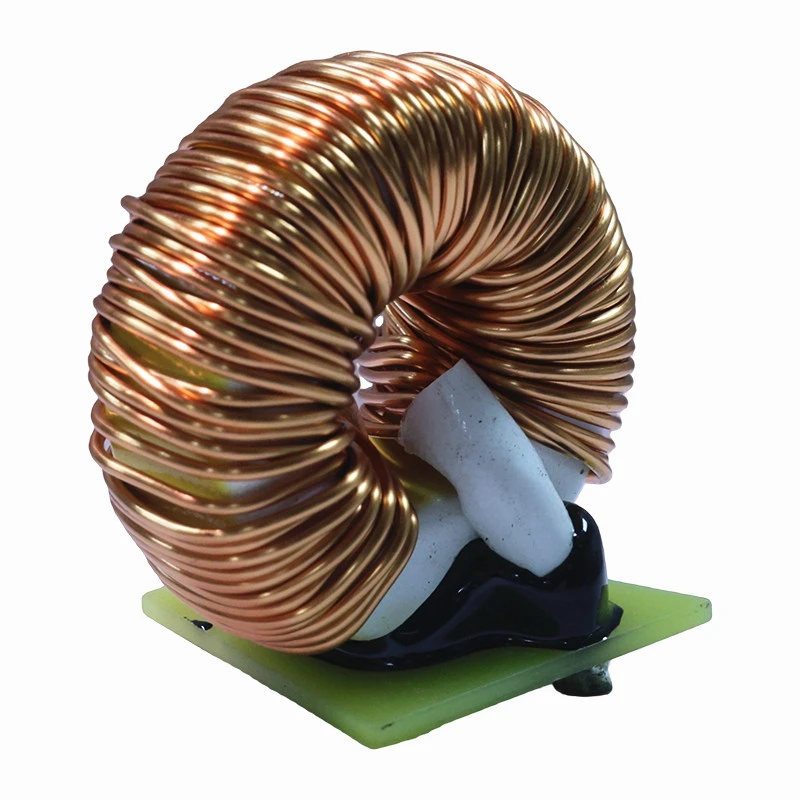

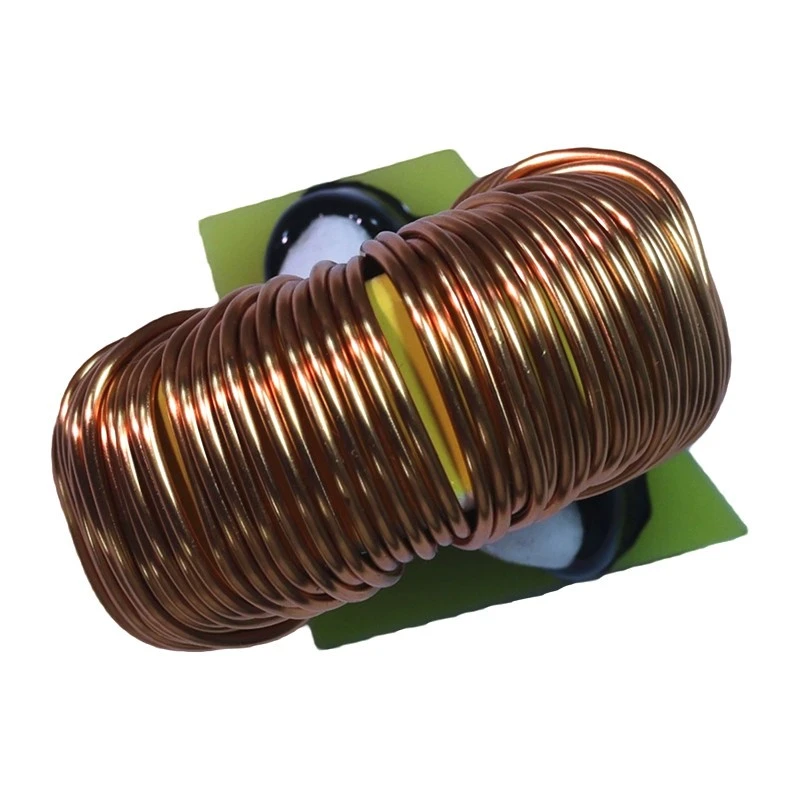

An EMI filter inductor is a passive electronic component used to suppress electromagnetic interference (EMI) in circuits. It leverages the inherent characteristic of inductors - passing DC while blocking high-frequency signals - to ensure electromagnetic compatibility (EMC). EMI filter inductors are primarily divided into common-mode chokes and differential-mode inductors.

Differential-mode inductor: A single-winding inductor specifically designed to suppress differential-mode interference noise, where the noise currents flow in opposite directions on power or signal lines.

Common-mode choke: An inductor consisting of two windings wound in opposite directions, primarily used to suppress common-mode interference.

Product Features

EMI filter inductors are used to suppress electromagnetic interference entering and exiting equipment, offering bidirectional suppression capability. They not only prevent external noise from entering the device but also stop noise generated by the device itself from contaminating the external power grid. With a wide variety of types and flexible structural designs, they are suitable for diverse applications and operating conditions.

Application Fields

EMI filter inductors are mainly used in:

Switching Power Supplies

Consumer Electronics

New Energy Vehicles

Medical Equipment

FAQ

Q: How to select the appropriate magnetic core material?

A: Mn-Zn Ferrite: Suitable for frequencies below 10 MHz. Key features: high permeability, low cost. Commonly used in switching power supplies.

Ni-Zn Ferrite: Suitable for frequencies from 10 MHz to 1 GHz. Key features: low loss, relatively low permeability. Ideal for applications requiring higher operating frequencies.

Amorphous / Nanocrystalline: Suitable for high-frequency, high-current applications. Key features: high saturation flux density, low core loss. Commonly used in new energy and automotive electronics.
