Product Introduction
Ferrite power transformers generally refer to high-frequency transformers composed of magnetic cores sintered from metal oxides such as manganese-zinc (Mn-Zn) or nickel-zinc (Ni-Zn), along with coils. They feature high resistivity, low eddy current loss, and high magnetic permeability, making them particularly suitable for high-frequency applications.
Common models include EE, EI, ER, EPC, ER, ETD, EFD, PQ, and RM types.
Product Features
• High electrical resistivity and low power loss
• Wide operating frequency range
• Compact size and light weight
• Low magnetic flux leakage
• High efficiency
Application Fields
Ferrite power transformers are mainly used in:
FAQ
Q1: What determines the power rating of a ferrite power transformer?
A: Core size and effective cross-sectional area (Aₑ): Larger Aₑ supports higher power output.
Operating frequency: Higher operating frequency allows greater power transmission.
Ferrite material: Conventional PC95 exhibits lower high-frequency loss than PC40, enabling higher power transfer at elevated frequencies.
Circuit topology: Optimized topologies maximize power output for the same core structure.
Q2: How to distinguish ferrite power transformers from silicon steel sheet power transformers?
A: Core structure: Ferrite power transformer cores are generally integrally die-cast, while silicon steel sheet power transformer cores are typically stacked with laminated silicon steel sheets.
Application scenario: Ferrite power transformers are exclusively used in high-frequency circuits, usually accompanied by integrated circuits such as PCBs, MOSFET switches and heat sinks. In contrast, silicon steel sheet power transformers are directly connected to 220V AC mains.
Product Parameters
|

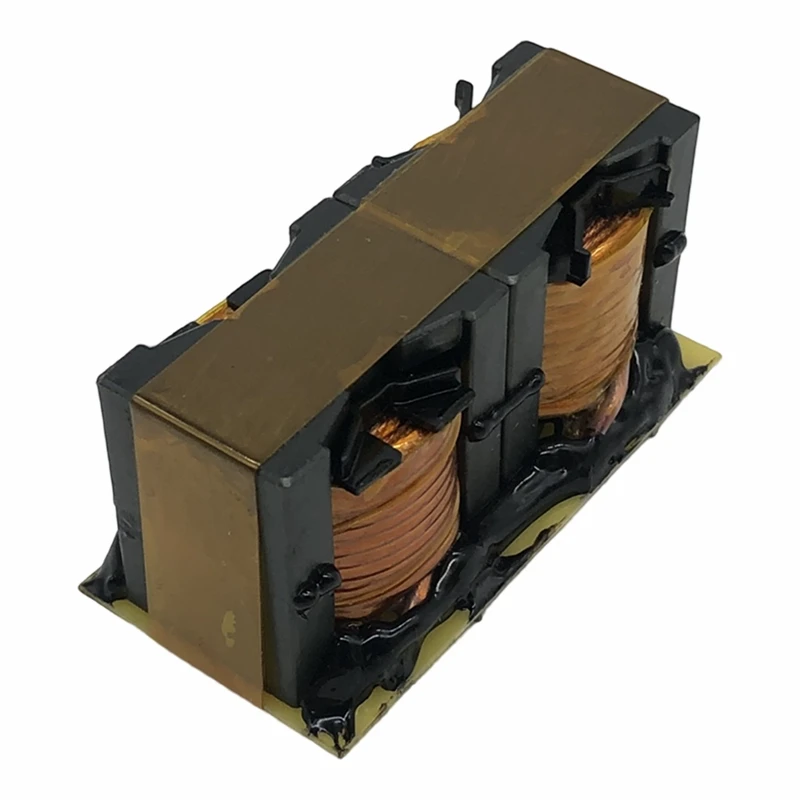

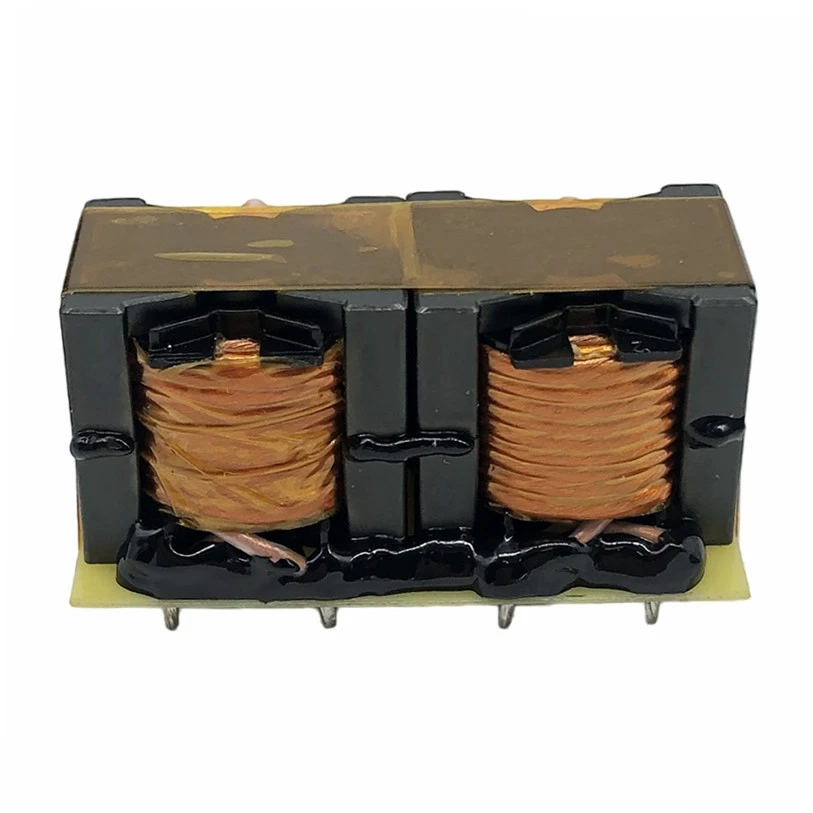

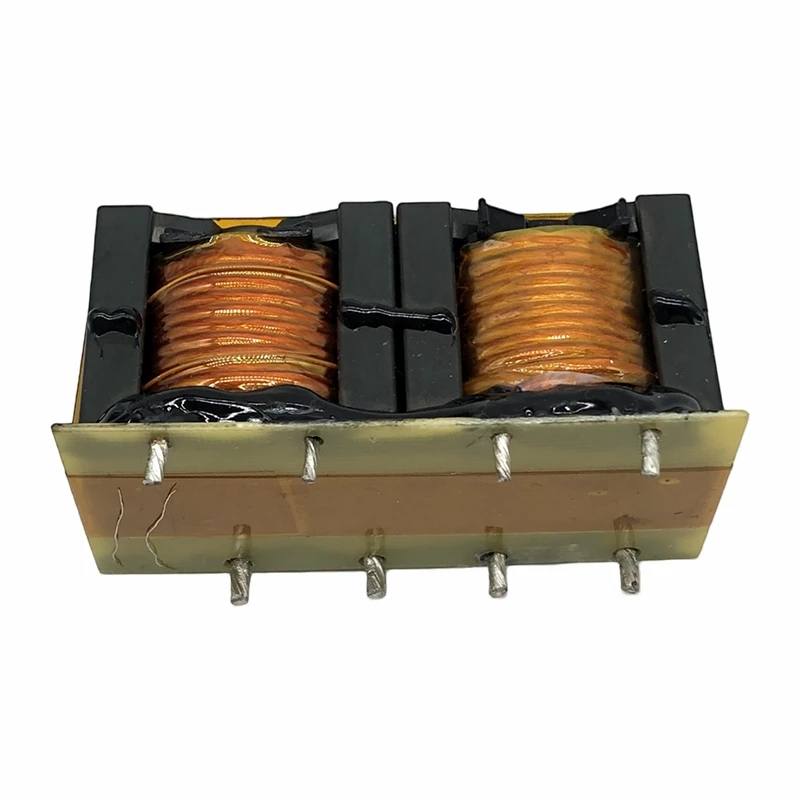

Model No.: |
PQ3230*2P |
Withstand Voltage: |
375V/60S/2mA |
|
Power Rating: |
2600W |
Temperature Class: |
Class F |
|
Inductance: |
240uH±10% |
Turns Ratio: |
22:16:2 |
