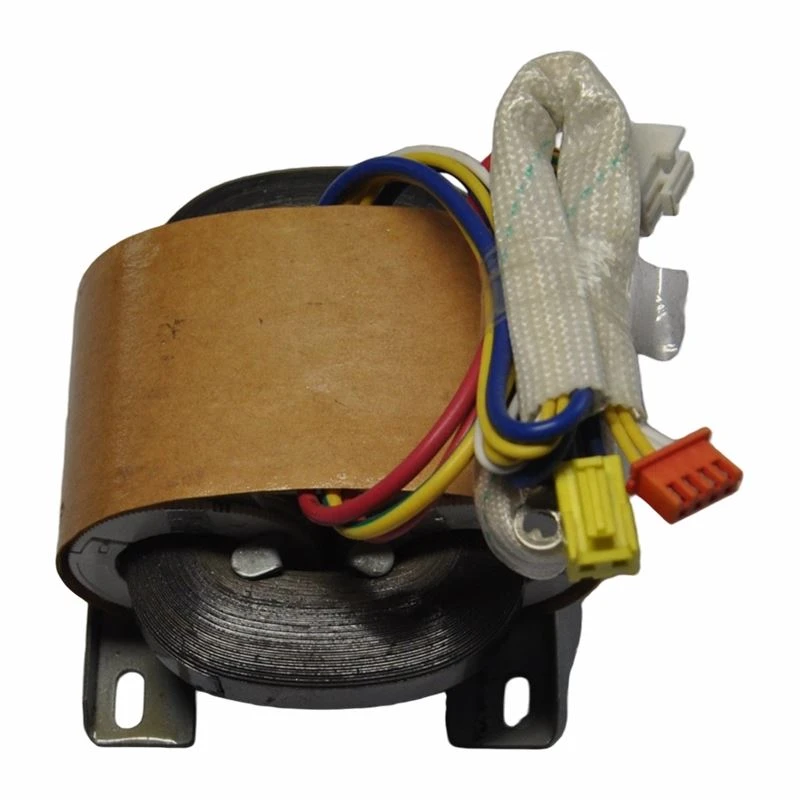

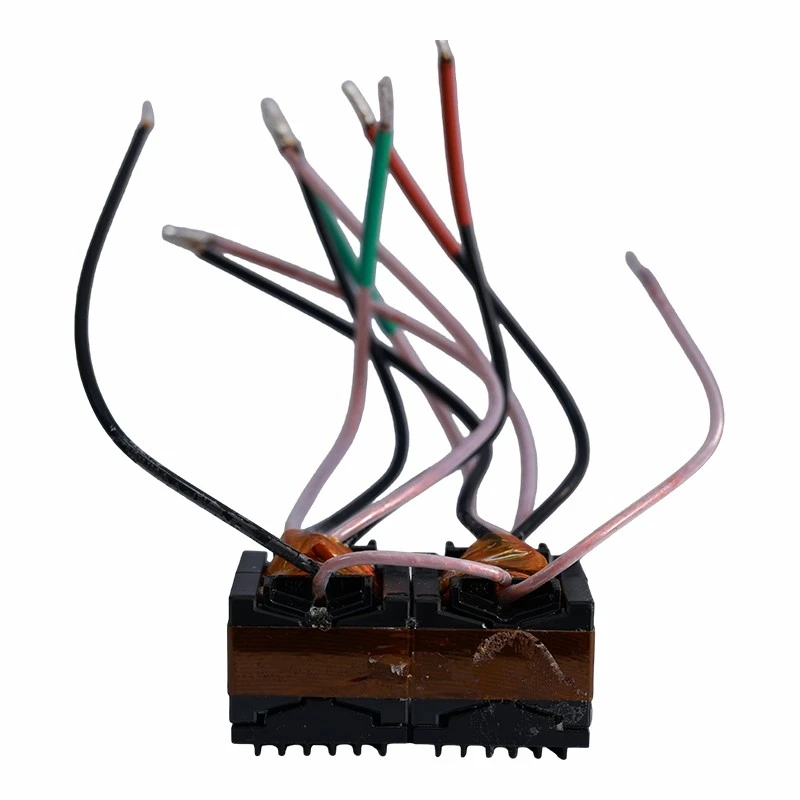

Product Introduction
High voltage isolation transformers typically operate above 1,000 V and achieve complete electrical isolation between input and output winding via electromagnetic induction, with no direct electrical connection between primary and secondary sides. They ensure safety in high-voltage systems, suppress interference, and protect equipment.
Product Features
The main technical characteristics of high-voltage isolation transformers include:
• Providing electrical isolation to ensure personal safety;
• Filtering out power grid interference;
• Supporting customized voltage conversion;
• Breaking ground loops to eliminate signal interference.
However, such transformers are generally larger in size, heavier in weight, and higher in cost than ordinary transformers. Additionally, their efficiency is relatively low due to the extra coils and insulating materials.
Application Fields
High-voltage isolation transformers are mainly used in:
FAQ
Q: What is the function of a high-voltage isolation transformer?
A: Its main functions are as follows:
• Provide electrical isolation to ensure personal safety.
• Suppress power grid interference and purify the power supply.
• Stabilize system voltage.
• Limit short-circuit current.
Product Parameters
|
Model No.: |
EI76 |
Withstand Voltage: |
2000V/60S/2mA |
|
Pow Rating: |
50W |
Temperature Class: |
Class F |
|
Input Voltage: |
220V |
Output Voltage: |
220V |
