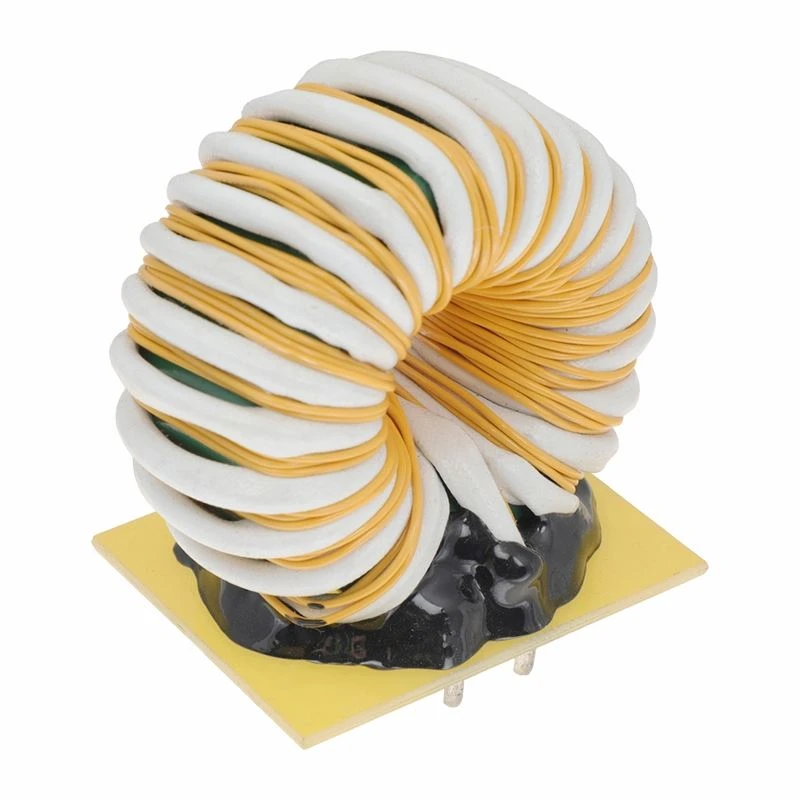

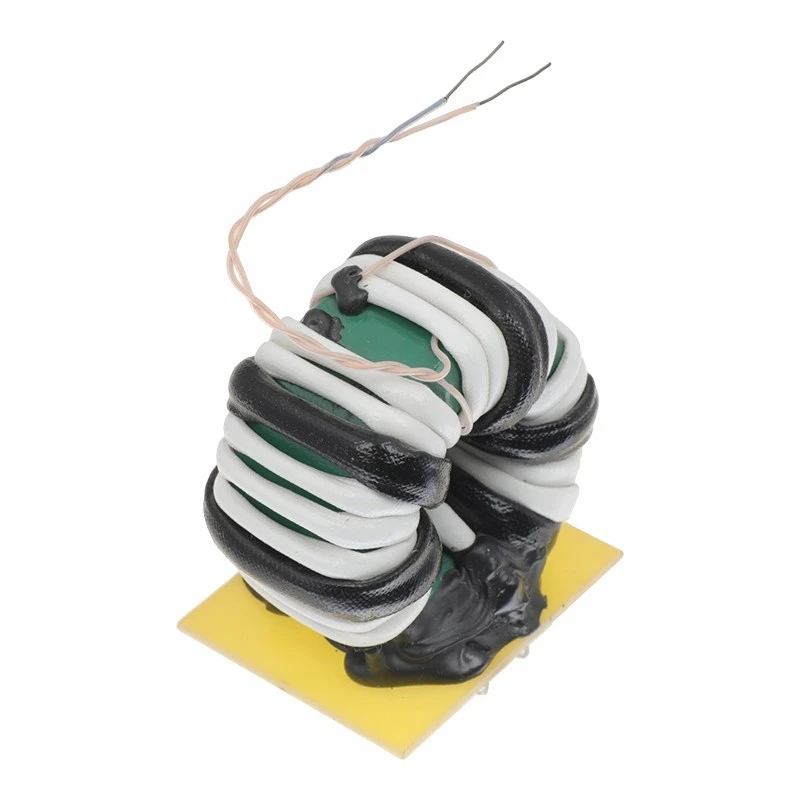

Balanced Toroidal Transformer

The balanced toroidal transformer is a high-performance three-phase AC isolation transformer built upon the traditional three-phase toroidal transformer, featuring a symmetrical winding design. Its core function is to convert three-phase 380V AC power into a symmetrically balanced three-phase 380V voltage, integrating four key roles: voltage conversion, electrical isolation, voltage stabilization with noise reduction, and three-phase balance regulation. Its primary advantage lies in the combination of symmetrical winding arrangement and a closed toroidal core, enabling balanced output of three-phase current and voltage, thereby fundamentally solving issues such as overheating, noise, and increased losses caused by unbalanced three-phase loads in conventional transformers. It is a core power device for medium- to high-power applications that demand extremely high levels of power balance and stability.

The balanced toroidal transformer features a symmetrical winding design, with the primary and secondary three-phase windings having identical turns and wire diameters, arranged evenly and symmetrically to achieve balanced output of three-phase voltage and current. Its core has no splicing gaps, resulting in virtually noiseless operation and an efficiency of over 95%. It can support multiple outputs depending on different application scenarios, and its structure allows for more convenient installation.
